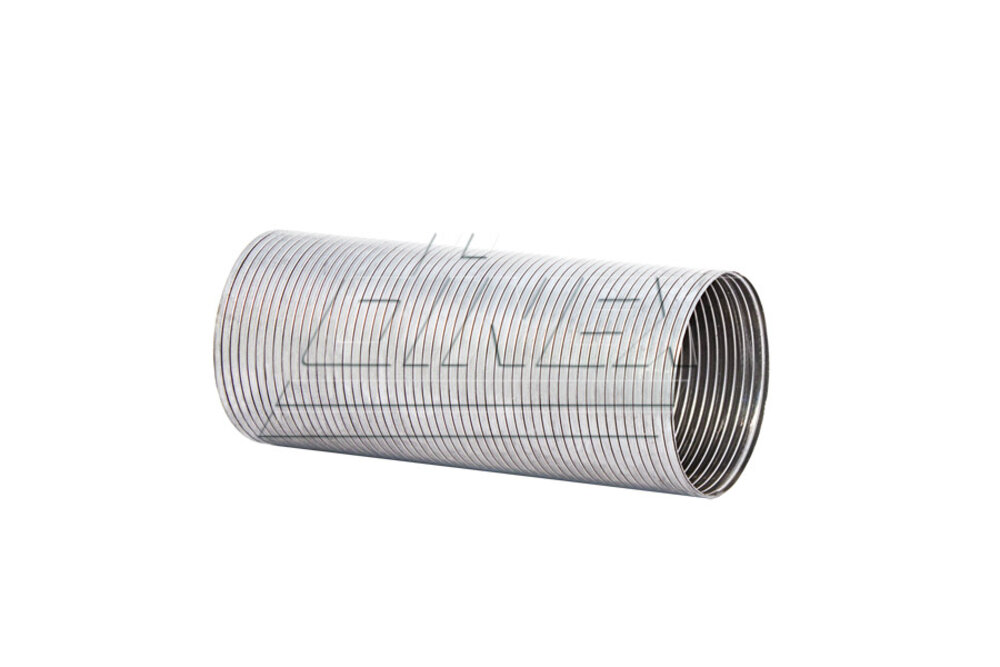

Flex Pipe, D2S+, OD/ID=106.1/102.7 L=266, SS

D2S+ Round Double Interlocked Profile


Leakage Rate: 9.0 L min-1dm-2 @0.30bar

Flexibility/Force: 60-250 N (±23mm from mid position)

Axial Extension: > = 30% (> = 90mm)

Maximum Torsion: 5˚ (@ compressed length of 300mm)


Max temperature 550 degrees

1 Year Warranty

Dinex nr87102
EAN5700760103144
Materiałstal szlachetna
Średnica zewnętrzna [mm]106.10
Żrednica wewnętrzna [mm]102.70
Ciężar netto [kg]1.40

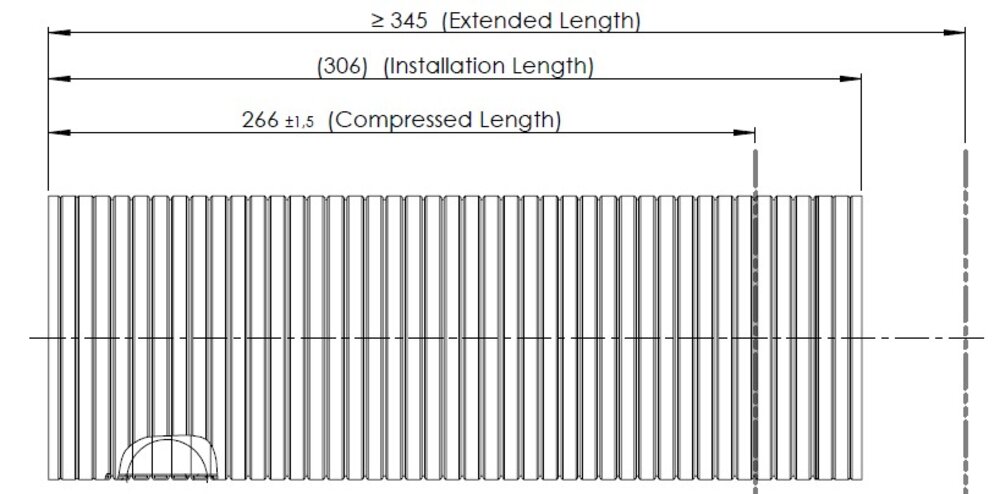

Extended Length345
Installation Length306
Inner diameter [inch]4
Outer diameter [inch]4 1/6
